The Joven Storage Water Heater JSH-HE Series is a line of central multi-point storage water heaters with enhanced dry-burn protection. This feature ensures that the heater automatically shuts off if it detects a dry burn condition, which can happen if the water tank is empty. This helps to prevent the heating element from overheating and failing.
The JSH-HE Series comes in three different sizes:

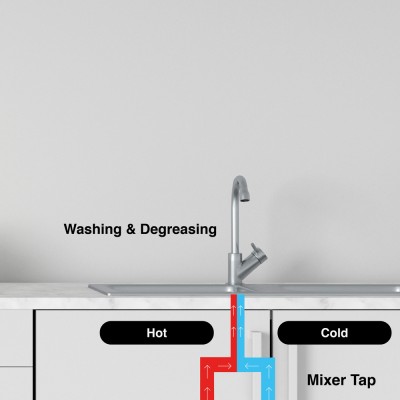

- JSH25-HE: 25 liters (suitable for a single sink or a standard shower)
- JSH35-HE: 35 liters (suitable for 1 normal shower and 1 wash basin / 1 rain shower 6”)
- JSH35-HE: 38 liters (suitable for 1 Normal Shower and 1 Wash Basin / 1 Rain Shower 6” )
- JSH35-HE: 50 liters (suitable for 2 Normal Shower / 1 Rain Shower 8” / 1 Rain Shower 6” or 1 Wash Basin )
- JSH56-HE: 56 liters (suitable for 2 Normal Shower / 1 Rain Shower 8” / 1 Rain Shower 6” or 1 Wash Basin )
- JSH68-HE: 68 liters (suitable for 1 Long Bath or 3 Normal Shower / 1 Rain Shower 10” or 2 Rain Shower 6” )
- JSH91-HE: 91 liters (suitable for 1 Jacuzzi or 1 Washing Machine / 1 Long Bath and 1 Normal Shower / 1 Rain Shower 10” and 1 Rain Shower 6” 1 Rain Shower 12”)
| JSH25-HEInnovative Features - Centralised multi-point system with enhanced dry-burn protection

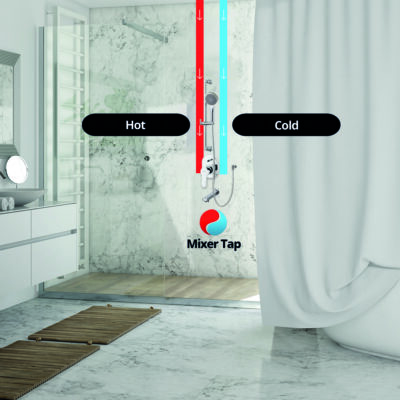

- For 1 sink or 1 normal shower
- Capacity 25L ; 5.5 Imp. Gallons
- Power rating 1.5 kW – 3.0 kW ; 13 Amp – 20 Amp
- Hot water up to 70°C
- High quality incoloy heating element
- SUS304 Stainless Steel Tank
- HE Energy Saving Technology ; Save Energy 20%
- High density CFC-Free Polyurethane Insulation Foam for durability and stellar performance
Accessories - Universal mounting ring bracket (Patent Pending)
- Expansion Bolts
Safety - Enhanced Dry-Burn Protection
- Thermostat with thermal cut-off
- Pressure relief and drain valve
|
| JSH35-HEInnovative Features - Centralised multi-point system with enhanced dry-burn protection
- For 1 normal shower and 1 wash basin / 1 rain shower 6”
- Capacity 35L ; 7.7 Imp. Gallons
- Power rating 1.5 kW – 3.0 kW ; 13 Amp – 20 Amp
- Hot water up to 70°C
- High quality incoloy heating element
- SUS304 Stainless Steel Tank
- HE Energy Saving Technology ; Save Energy 20%
- High density CFC-Free Polyurethane Insulation Foam for durability and stellar performance
Accessories - Universal mounting ring bracket (Patent Pending)
- Expansion Bolts
Safety - Enhanced Dry-Burn Protection
- Thermostat with thermal cut-off
- Pressure relief and drain valve
|
| JSH38-HEInnovative Features - Centralised multi-point system with enhanced dry-burn protection
- For 1 Normal Shower and 1 Wash Basin / 1 Rain Shower 6”
- Capacity Capacity 38L ; 8.4 Imp. Gallons
- Power rating 1.5 kW – 3.0 kW ; 13 Amp – 20 Amp
- Hot water up to 70°C
- High quality incoloy heating element
- SUS304 Stainless Steel Tank
- HE Energy Saving Technology ; Save Energy 20%
- High density CFC-Free Polyurethane Insulation Foam for durability and stellar performance
Accessories - Universal mounting ring bracket (Patent Pending)
- Expansion Bolts
Safety - Enhanced Dry-Burn Protection
- Thermostat with thermal cut-off
- Pressure relief and drain valve
|
| JSH50-HEInnovative Features - Centralised multi-point system with enhanced dry-burn protection
- For 2 Normal Shower / 1 Rain Shower 8” / 1 Rain Shower 6” or 1 Wash Basin
- Capacity Capacity 50L ; 11.0 Imp. Gallons
- Power rating 1.5 kW – 3.0 kW ; 13 Amp – 20 Amp
- Hot water up to 70°C
- High quality incoloy heating element
- SUS304 Stainless Steel Tank
- HE Energy Saving Technology ; Save Energy 20%
- High density CFC-Free Polyurethane Insulation Foam for durability and stellar performance
Accessories - Universal mounting ring bracket (Patent Pending)
- Expansion Bolts
Safety - Enhanced Dry-Burn Protection
- Thermostat with thermal cut-off
- Pressure relief and drain valve
|
| JSH56-HEInnovative Features - Centralised multi-point system with enhanced dry-burn protection
- For 2 Normal Shower / 1 Rain Shower 8” / 1 Rain Shower 6” or 1 Wash Basin
- Capacity 56L ; 12.3 Imp. Gallons
- Power rating 1.5 kW – 3.0 kW ; 13 Amp – 20 Amp
- Hot water up to 70°C
- High quality incoloy heating element
- SUS304 Stainless Steel Tank
- HE Energy Saving Technology ; Save Energy 20%
- High density CFC-Free Polyurethane Insulation Foam for durability and stellar performance
Accessories - Universal mounting ring bracket (Patent Pending)
- Expansion Bolts
Safety - Enhanced Dry-Burn Protection
- Thermostat with thermal cut-off
- Pressure relief and drain valve
|
| JSH68-HEInnovative Features - Centralised multi-point system with enhanced dry-burn protection
- For 1 Long Bath or 3 Normal Shower / 1 Rain Shower 10” or 2 Rain Shower 6”
- Capacity 68L ; 15.0 Imp. Gallons
- Power rating 1.5 kW – 3.0 kW ; 13 Amp – 20 Amp
- Hot water up to 70°C
- High quality incoloy heating element
- SUS304 Stainless Steel Tank
- HE Energy Saving Technology ; Save Energy 20%
- High density CFC-Free Polyurethane Insulation Foam for durability and stellar performance
Accessories - Universal mounting ring bracket (Patent Pending)
- Expansion Bolts
Safety - Enhanced Dry-Burn Protection
- Thermostat with thermal cut-off
- Pressure relief and drain valve
|
| JSH91-HEInnovative Features - Centralised multi-point system with enhanced dry-burn protection
- For 1 Jacuzzi or 1 Washing Machine / 1 Long Bath and 1 Normal Shower / 1 Rain Shower 10” and 1 Rain Shower 6” 1 Rain Shower 12”
- Capacity 91L ; 20.0 Imp. Gallons
- Power rating 1.5 kW – 3.0 kW ; 13 Amp – 20 Amp
- Hot water up to 70°C
- High quality incoloy heating element
- SUS304 Stainless Steel Tank
- HE Energy Saving Technology ; Save Energy 20%
- High density CFC-Free Polyurethane Insulation Foam for durability and stellar performance
Accessories - Universal mounting ring bracket (Patent Pending)
- Expansion Bolts
Safety - Enhanced Dry-Burn Protection
- Thermostat with thermal cut-off
- Pressure relief and drain valve
|
